  • WNS型燃油(氣)蒸汽/熱水鍋爐WNS type fuel (gas) steam/hot water boiler
名稱:WNS型燃油(氣)蒸汽/熱水鍋爐WNS type fuel (gas) steam/hot water boiler
詳細介紹

產品范圍

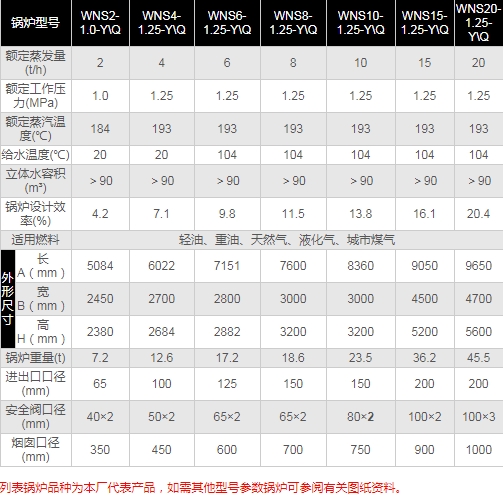

  蒸汽鍋爐:額定蒸發量:1-20t/h,額定工作壓力:0.7-1.6MPa



  WNS系列全自動燃油(燃氣)蒸汽、熱水鍋爐是一種臥式三回程火管鍋爐。其主要結構由鍋殼、爐膽、轉向煙室、煙管等組成。鍋爐適用輕油、重油、天然氣、液化氣、城市煤氣等燃料。

  采用濕背、波形爐膽結構,受熱面對稱布置,使鍋爐的受力和膨脹更合理;

  合理的受熱面布置保證了良好的水循環和熱交換,使傳熱效果達到好的狀態,提高了鍋爐熱效率;

  采用全對接焊縫濕背式結構,避免了后墻受高溫煙氣損壞,確保鍋爐可靠運行;

  燃燒室采用波形爐膽,有效的降低了鍋爐的熱應力,提高了鍋爐的an全性和使用壽命;

  選用國際品牌燃燒器和先進的全自動控制系統使鍋爐燃燒更穩定、操作更方便、運行安全可靠;鍋爐安裝時間短,在工地上接通儀表閥門、水源、電源、燃料管道、排放管道、即可投入運行。

Product Range

  Steam boiler: Rated evaporation: 1-20t / h, rated working pressure: 0.7-1.6MPa


  WNS series automatic fuel (gas) steam, hot water boiler is a horizontal three-return fire tube boiler. Its main structure consists of shells, furnace gallbladders, turning smoke chambers, smoke pipes and other components. Boilers are suitable for light oil, heavy oil, natural gas, liquefied gas, city gas and other fuels.

  Using wet back, wave furnace furnace structure, heating surface symmetrical layout, so that the force and expansion of the boiler is more reasonable;

  Reasonable heating surface arrangement to ensure a good water circulation and heat exchange, so that the best heat transfer effect, improve the thermal efficiency of the boiler;

  The use of full butt weld wet back structure to avoid damage to the rear wall by high temperature flue gas to ensure the reliable operation of the boiler;

  The use of corrugated furnace combustion chamber, effectively reducing the thermal stress of the boiler and improve the boiler's safety and service life;

  The selection of internationally renowned brand burners and advanced automatic control system to make the boiler combustion more stable, more convenient operation, more safe and reliable operation; boiler installation time is short, connected to the instrument valve on the site, water, power, fuel pipe, exhaust pipe , Can put into operation.
